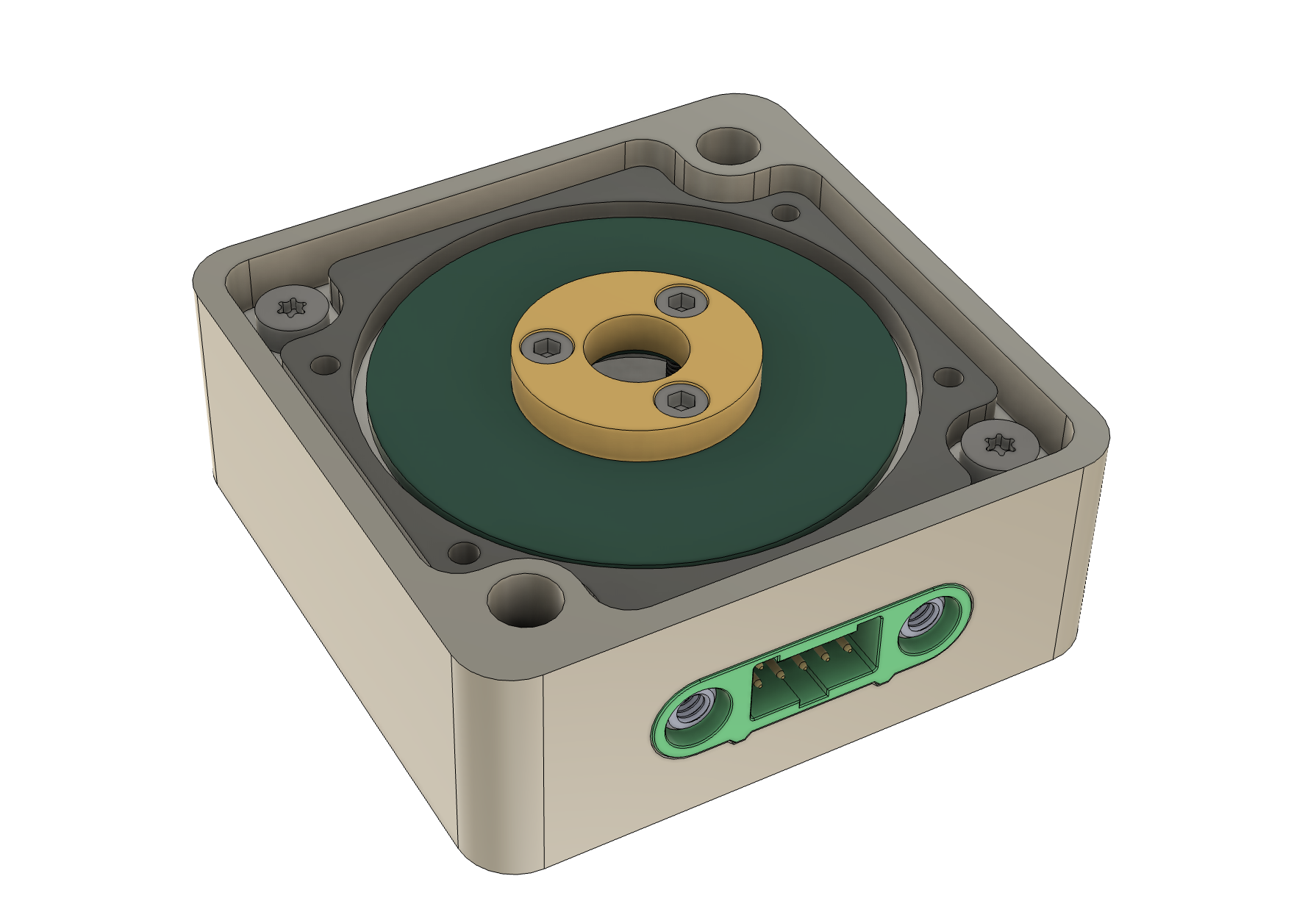

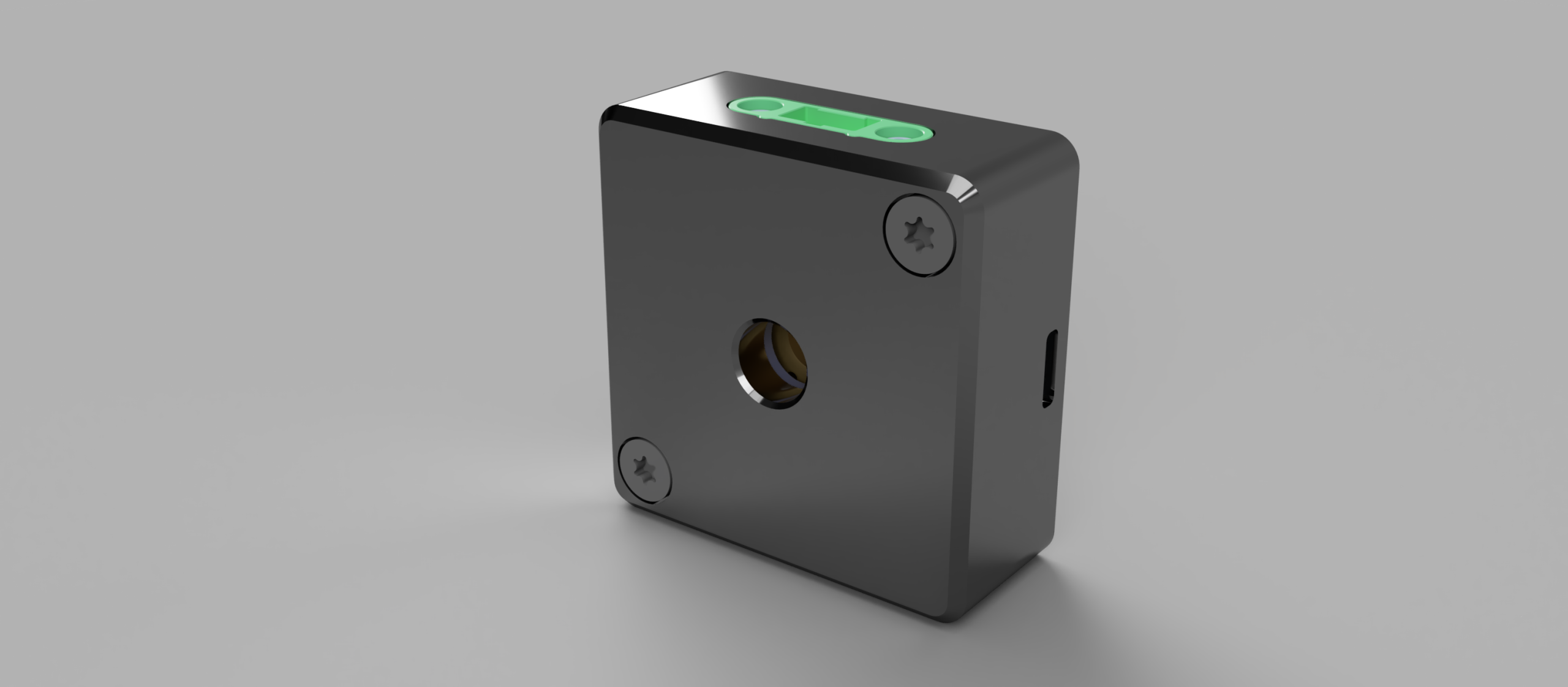

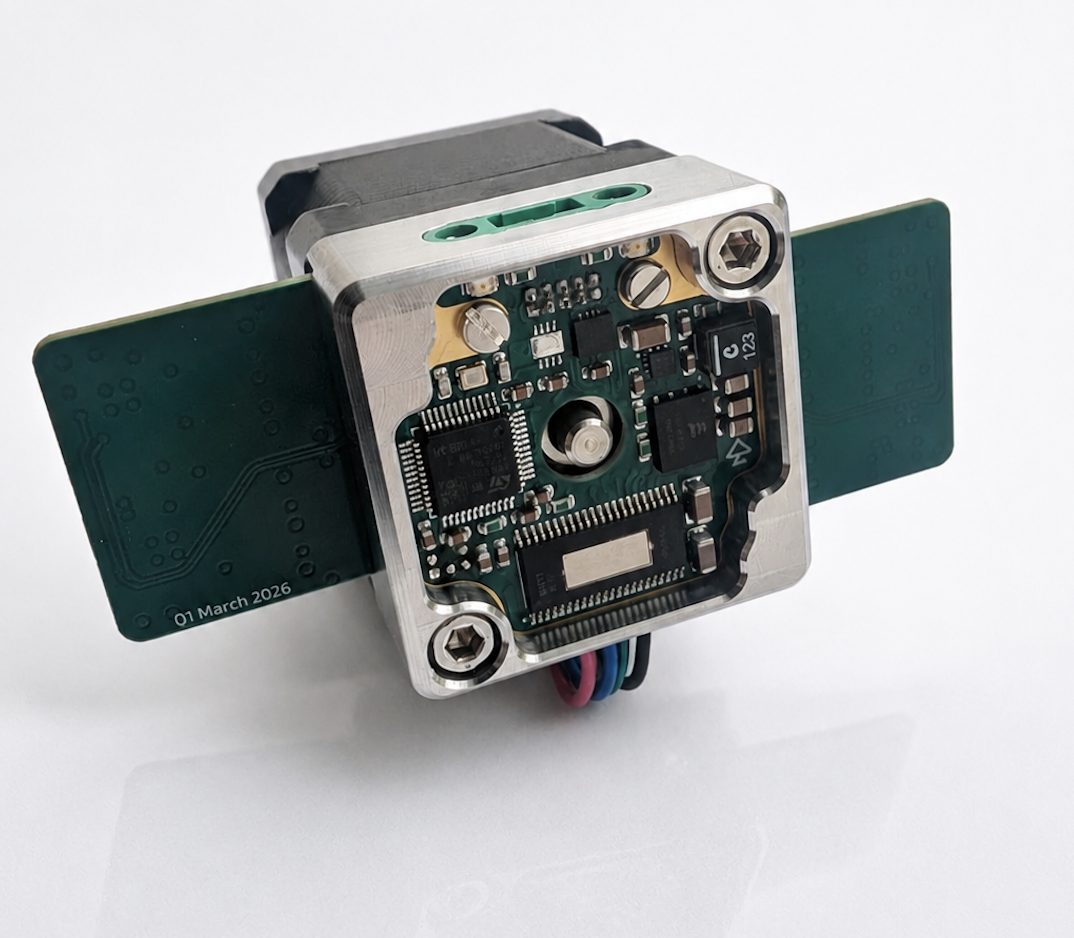

Ranger Mk1 transforms NEMA type stepper motors into networked smart actuator nodes with integrated motor control, telemetry, and closed-loop positioning, enabling simple system integration and reliable operation in demanding applications.

Scalable solution for multi axis actuation.

• CAN interface with simple Ace protocol

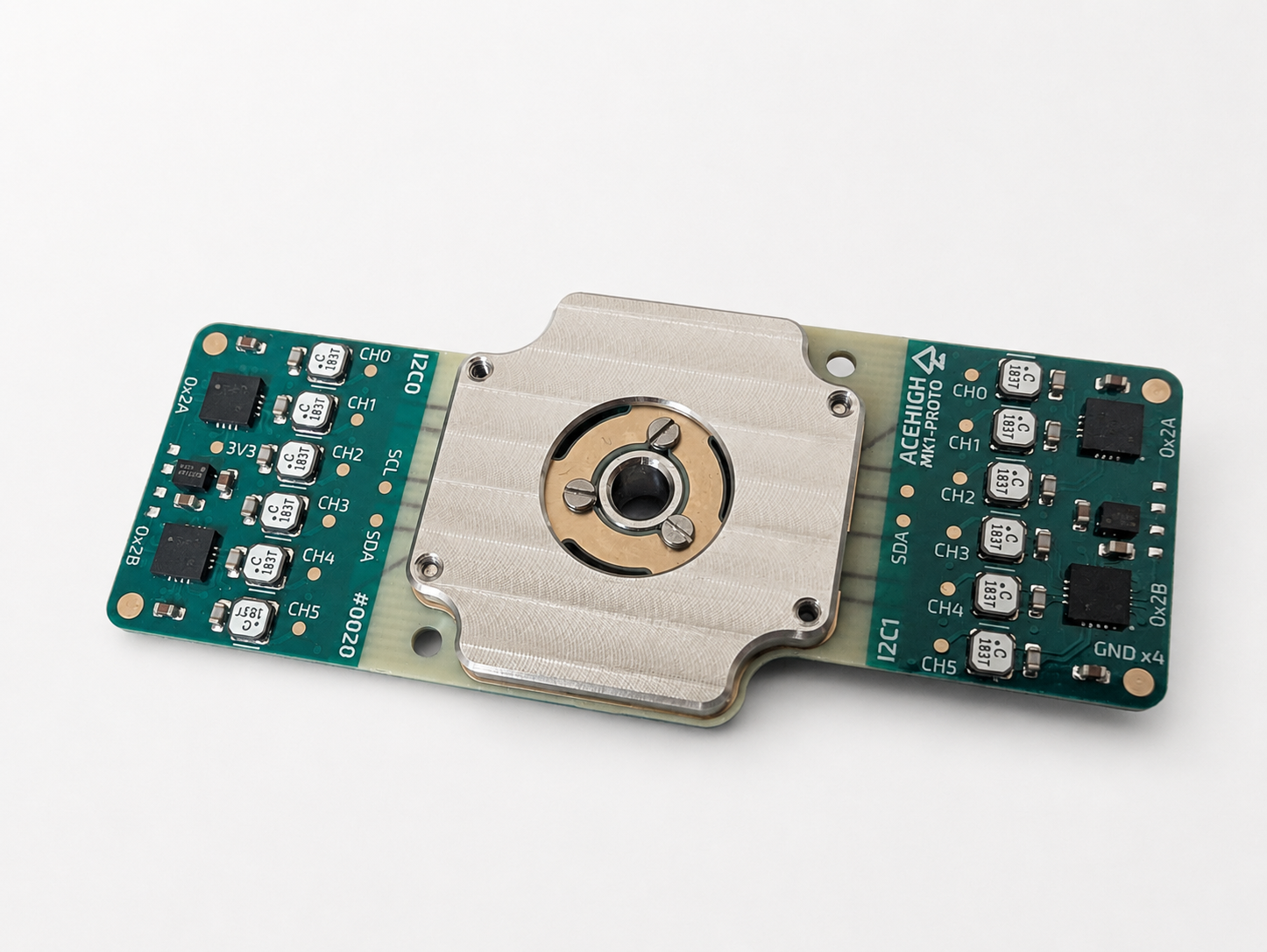

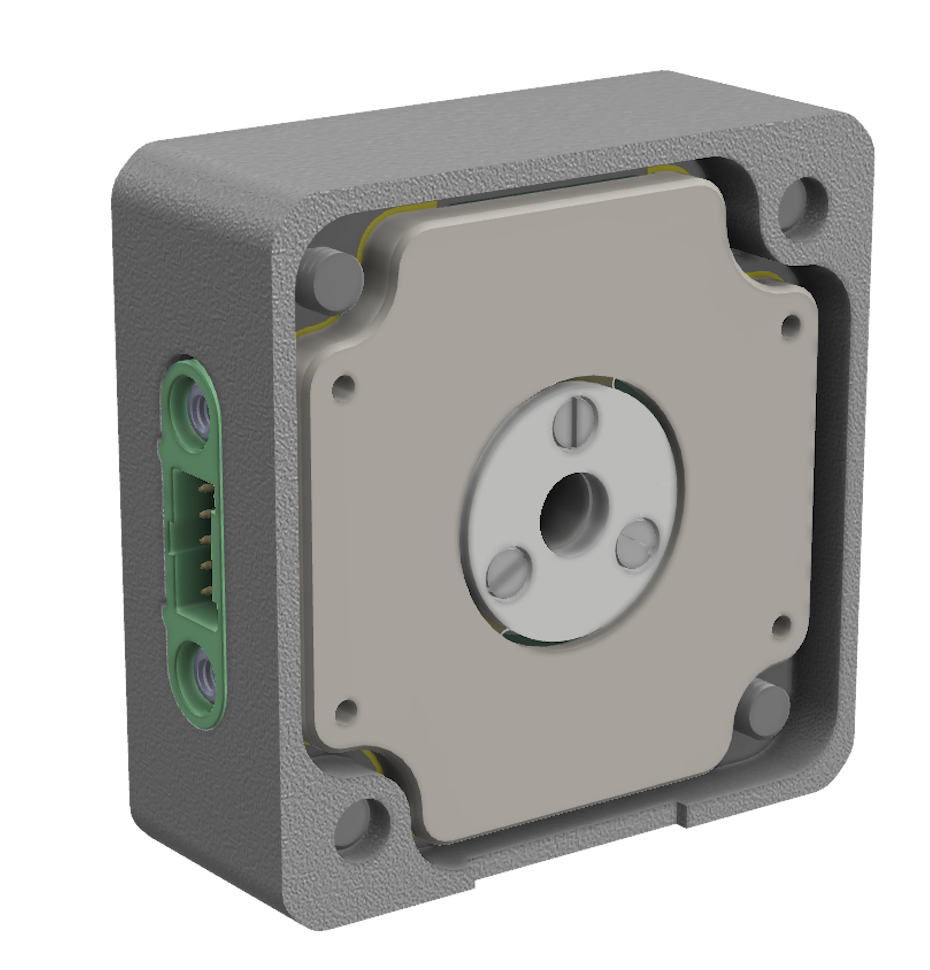

• 14-bit capacitive absolute encoder
• Temperature, power and health telemetry
• Stepper motor drive up to 10A and 65 volt
• Adjustable stepper maximum current
• Microstepping up to 1/256 step resolution
• Fault detection and reporting

• Dimensions: 35 x 35 x 14.5 mm
• Up to 4A motor current
